Spare parts for the hoods of a Bus

Panels on the VW Bus T2 – repairing the rear hatch and engine lid correctly

The panels on the VW Bus T2 are located in the rear body area and perform different functions there. The large rear hatch closes the rear access to the interior, while the engine lid provides access to the engine compartment. In addition to complete rear hatches and engine lids, the category contains specific repair panels for the lower section of the rear hatch and a repair panel for the rear window frame. This means that corrosion damage does not automatically require replacement of the entire component. What matters is how far rust or other damage has already spread. Lower edges, seams and areas around the window opening in particular should be inspected carefully before deciding on the extent of the body repair.

Why are intact panels important on the VW Bus T2?

The panels form large movable body components at the rear of the T2 and must fit correctly into the surrounding body contours. On the rear hatch, the window opening and rear window frame also play an important role. Corrosion along the lower edge or around the frame should therefore not be regarded merely as a cosmetic problem. Rust can spread along seams, edges and interconnected sheet-metal areas. The engine lid should also be examined for corrosion, deformation and suspicious previous repairs. An intact sheet-metal structure makes it easier to align the respective lid correctly and provides the basis for adjacent components and connections to fit together properly.

When should I inspect or repair the panels on my VW Bus T2?

Visible rust, bubbles beneath the paint, damaged lower edges, perforation or deformation are typical reasons for inspecting the panels more closely. On the rear hatch, the lower section and the rear window frame deserve particular attention. Moisture and dirt can encourage corrosion in difficult-to-see transitions there. On the engine lid, the edges, seams and connecting areas should be inspected in addition to the visible outer surface. Before a repair, it is advisable to expose the damaged area sufficiently to distinguish sound sheet metal clearly from corroded material. Only then can it be determined whether a repair panel is sufficient or whether a complete rear hatch or engine lid is required.

How are panels and repair sections restored on the VW Bus T2?

When repairing the panels, it is particularly important to preserve the shape and position of the respective component as accurately as possible. If individual repair panels are used, they must be carefully fitted to the existing sheet-metal structure.

• Fully expose the corrosion: Remove rust, coatings and problematic previous repairs until the actual extent of the damaged sheet metal can be identified.
• Inspect seams and frame areas: On the rear hatch, particularly examine the lower edge, rear window frame and adjacent connections for further corrosion.
• Align repair panels precisely: Fit new sheet-metal sections before final attachment and check contours and transitions to the existing hatch or lid structure.
• Restore corrosion protection: After completing the sheet-metal work, properly protect repaired seams, edges and accessible inner areas against moisture and renewed corrosion.

Careful alignment is also important when fitting a complete rear hatch or engine lid. Position and surrounding transitions should be checked before the final work on the component is completed.

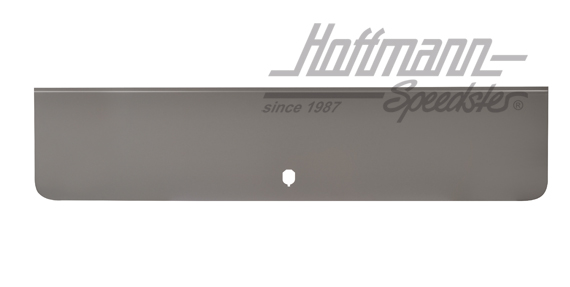

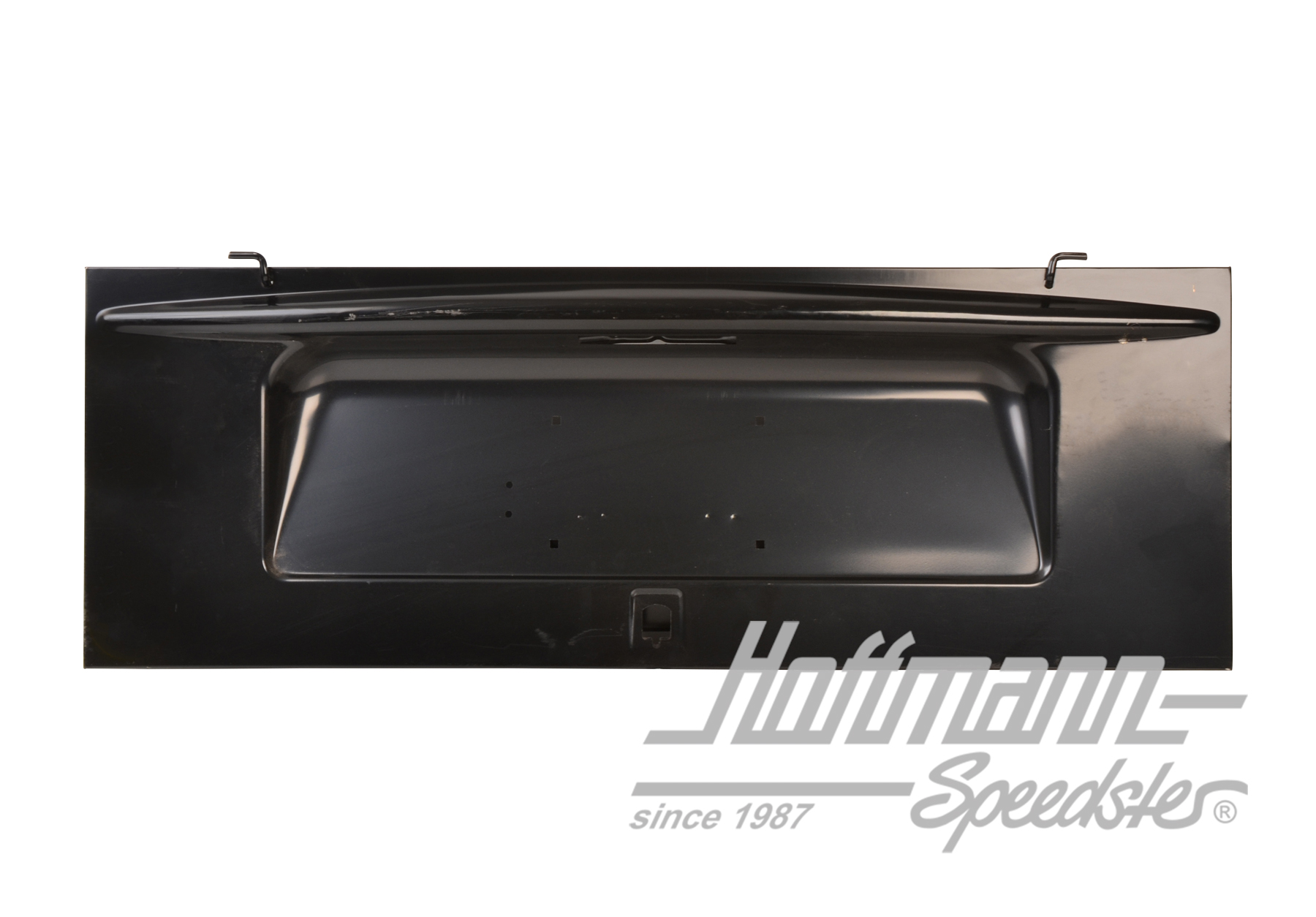

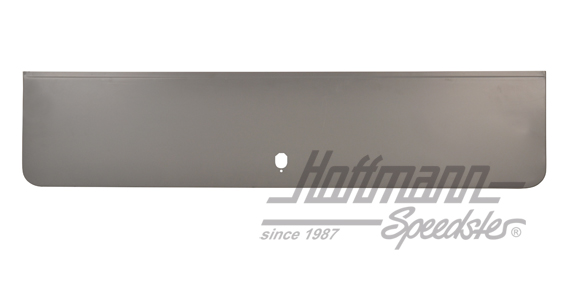

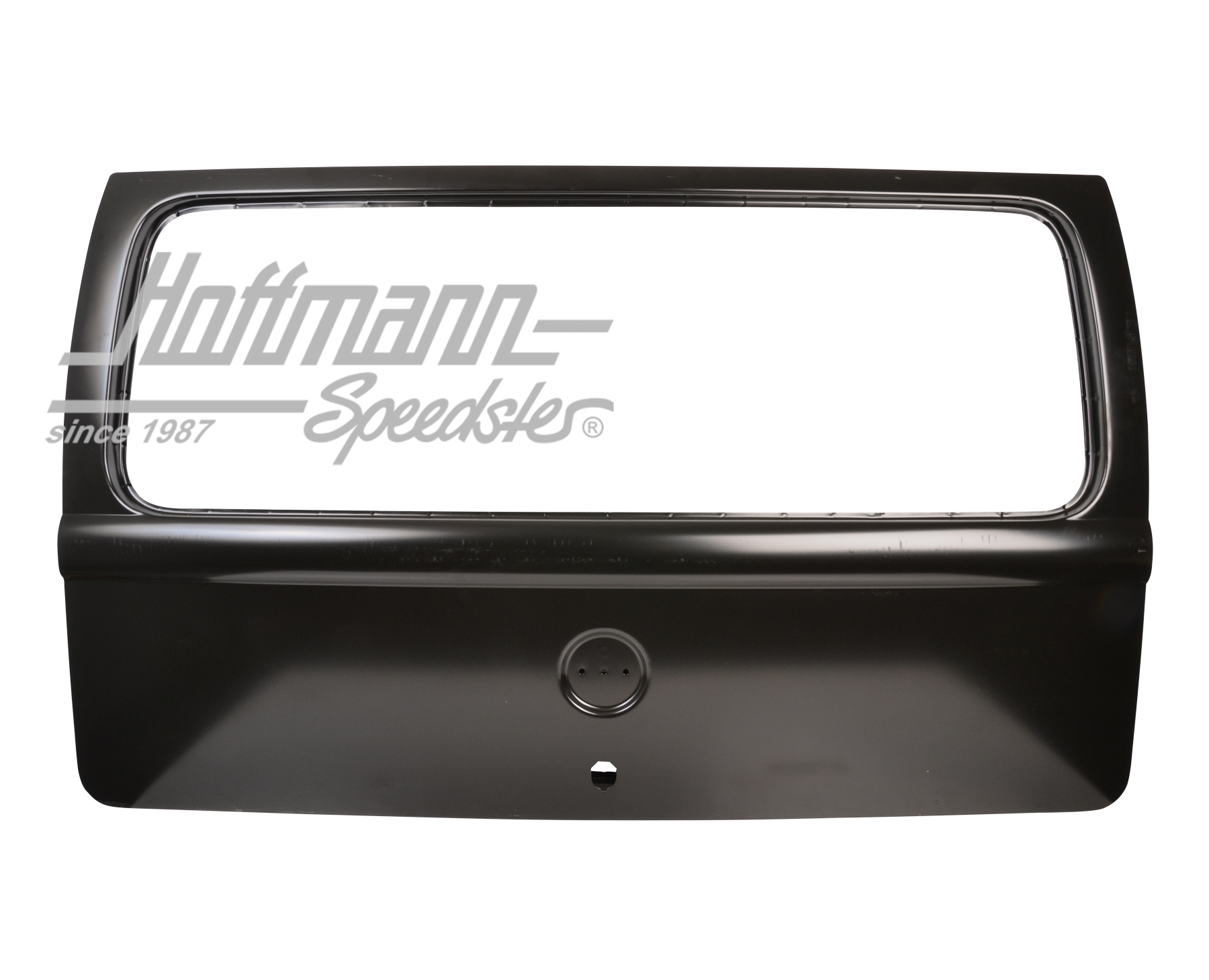

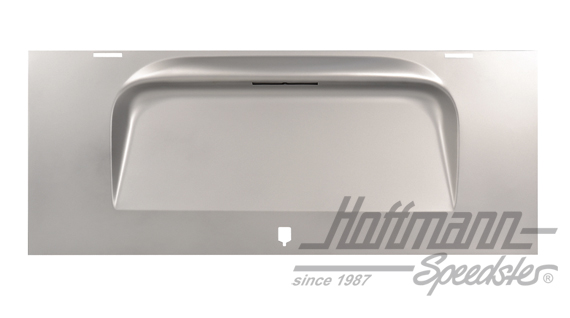

Which panels fit my VW Bus T2?
