Repair panels for the frame structure of the Bus

Frame structure for your VW Bus T2 – a stable basis for the body

The frame structure forms an important structural basis of your VW Bus T2. Various sheet-metal parts and load-bearing sections work together to ensure that the body retains the necessary stability and that occurring forces are reliably absorbed. These include longitudinal frame members, crossmembers, underfloor panels and other repair panels in different areas of the vehicle floor. Especially on a classic T2, age, moisture and corrosion can cause individual sections of the frame structure to become weakened. Professional inspection and repair help to preserve the vehicle’s original structure as permanently as possible.

Why is the frame structure of the VW Bus T2 so important?

The frame structure connects numerous areas of the body and contributes significantly to the structural strength of the vehicle. In particular, longitudinal frame members and crossmembers perform important tasks in absorbing and transferring loads. If these areas are weakened by rust or previous improper repairs, this can affect the stability of adjacent body components. For this reason, attention should not be limited to obviously damaged areas. Transitions, welded sections, cavities and covered sheet-metal areas also deserve careful inspection. A solid body structure is particularly important during a comprehensive restoration, as many subsequent body repairs depend on an intact and dimensionally accurate underlying structure.

When should I inspect or repair the frame structure?

An inspection is especially advisable if rust spots, swollen coatings, damaged weld seams or areas that have already rusted through become visible on the underside. Noticeable traces of previous repairs can also be a reason to examine the frame structure more closely. During a restoration, the inspection should ideally be carried out before adjacent body panels are permanently installed. It is also important not to assess only the visible outer surface of a damaged area. Corrosion may have spread further between overlapping panels or inside cavities. Only after careful exposure can it be determined whether a local repair is sufficient or whether a larger section of the relevant repair panel or structural member needs to be replaced.

How is the frame structure repaired?

Work on the frame structure requires careful preparation because the position and alignment of load-bearing sheet-metal components are crucial for the subsequent body geometry. Before cutting out damaged areas, existing dimensions, attachment points and the position of neighbouring components should be checked.

• Completely expose damaged and corroded areas and assess the actual extent of the damage.
• Check the attachment points and positions of longitudinal frame members, crossmembers and adjacent panels before removal.
• First align the appropriate repair part and check its fit before permanently securing it.
• After the repair, treat welded areas, transitions and cavities with suitable corrosion protection.

Clean workmanship and correct alignment are particularly important for load-bearing body components. If damaged sections are installed inaccurately, deviations can affect neighbouring components and subsequent assembly steps. In the case of extensive damage, the repair should therefore be carried out or supervised by an appropriately experienced specialist.

Which frame structure component or repair panel fits my VW Bus T2?

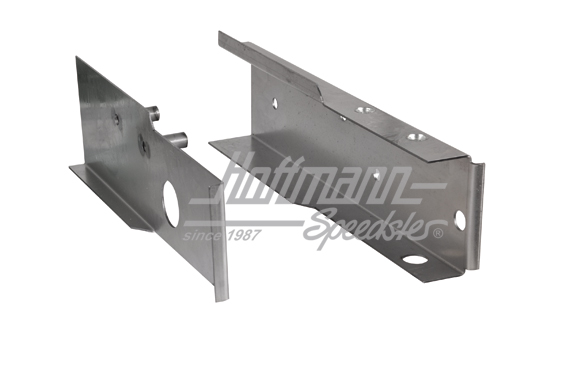

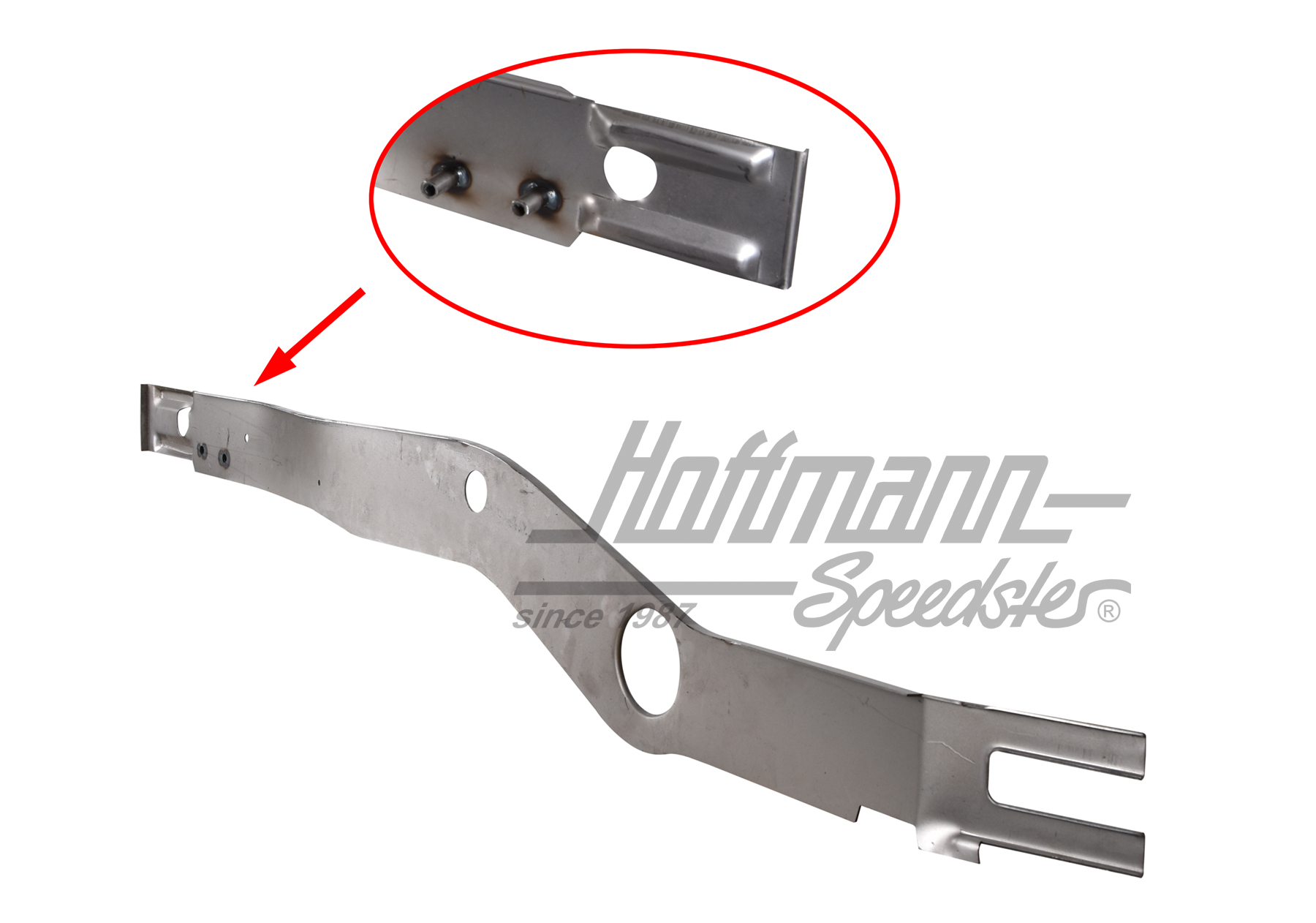

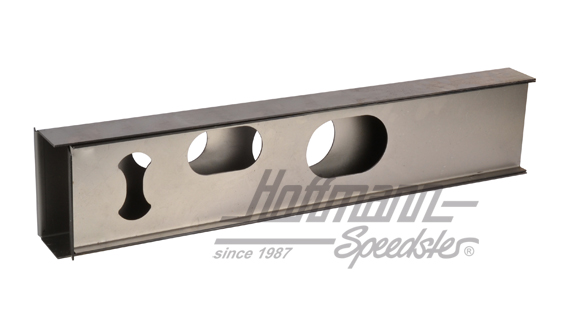

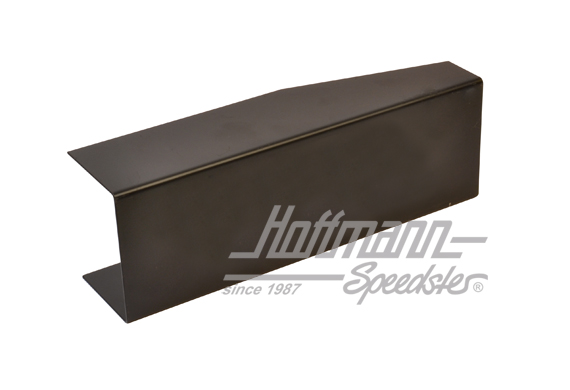

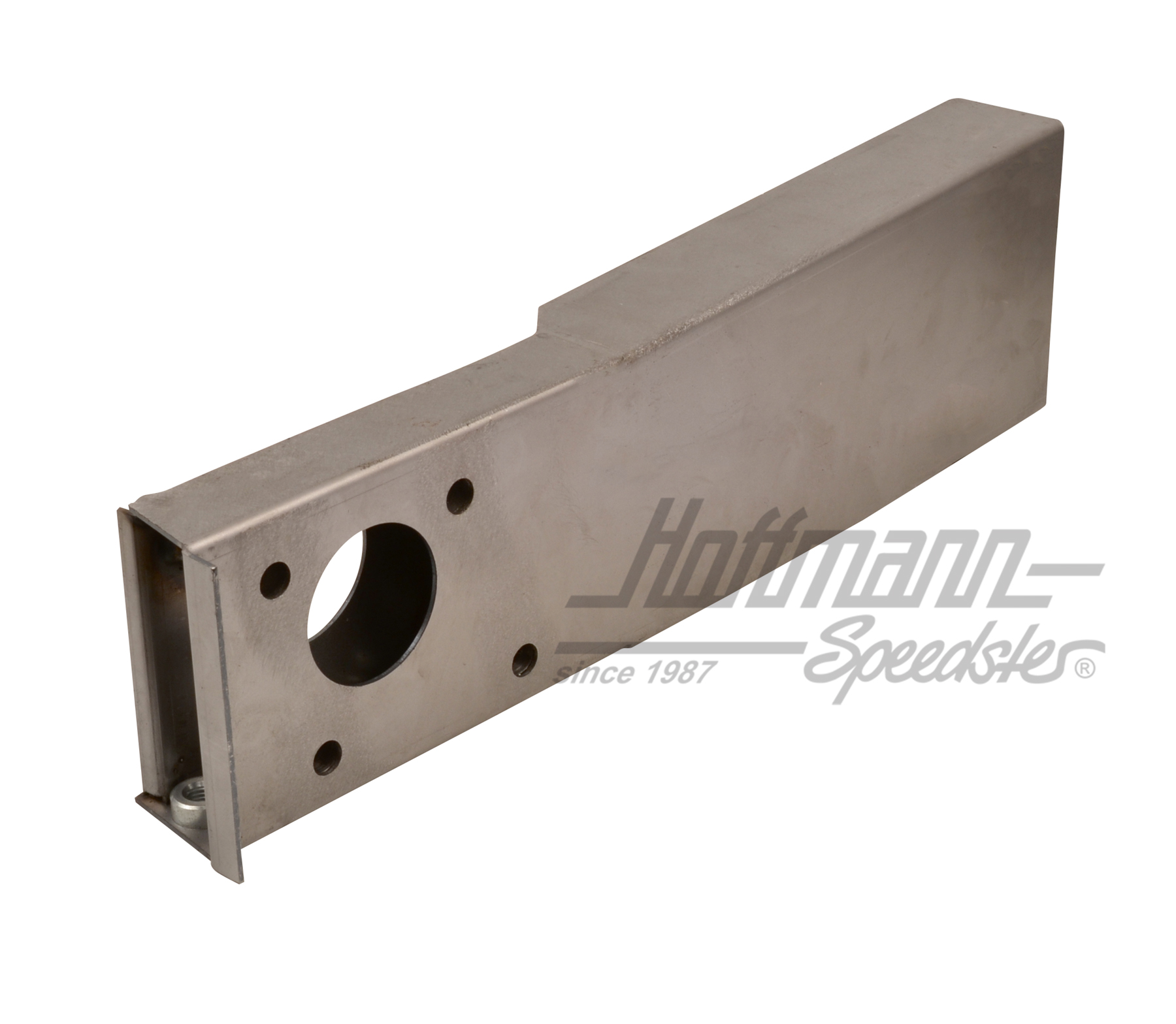

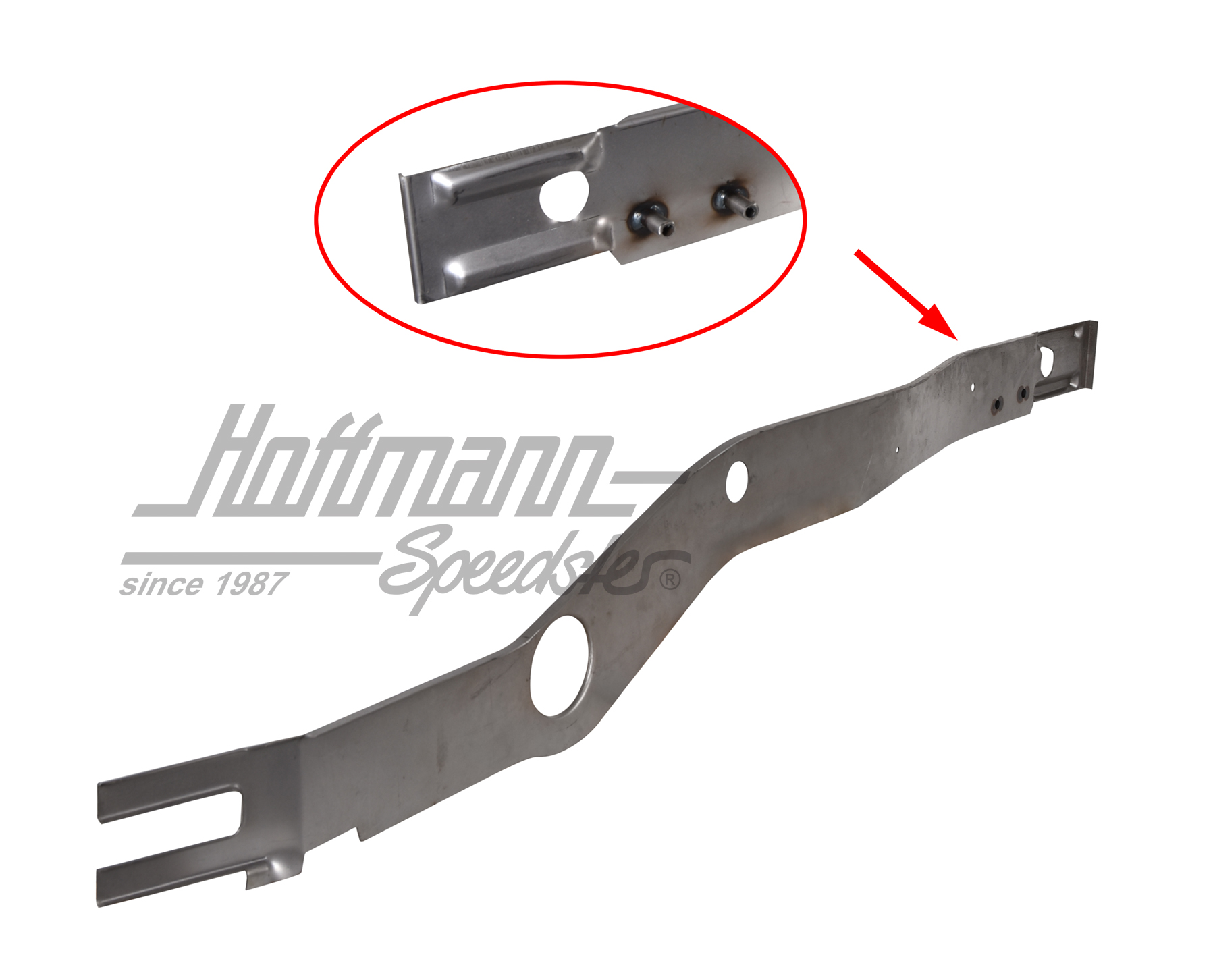

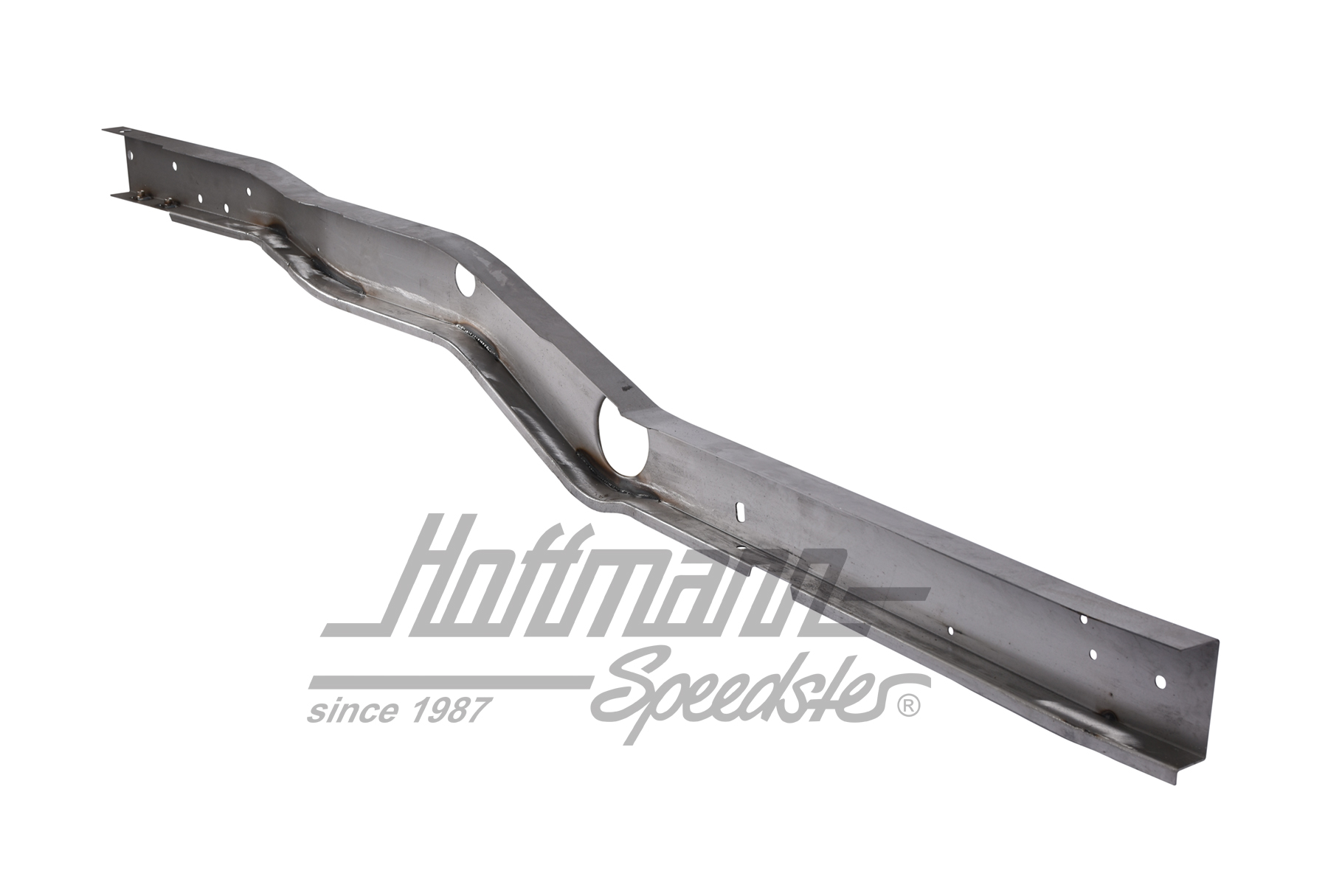

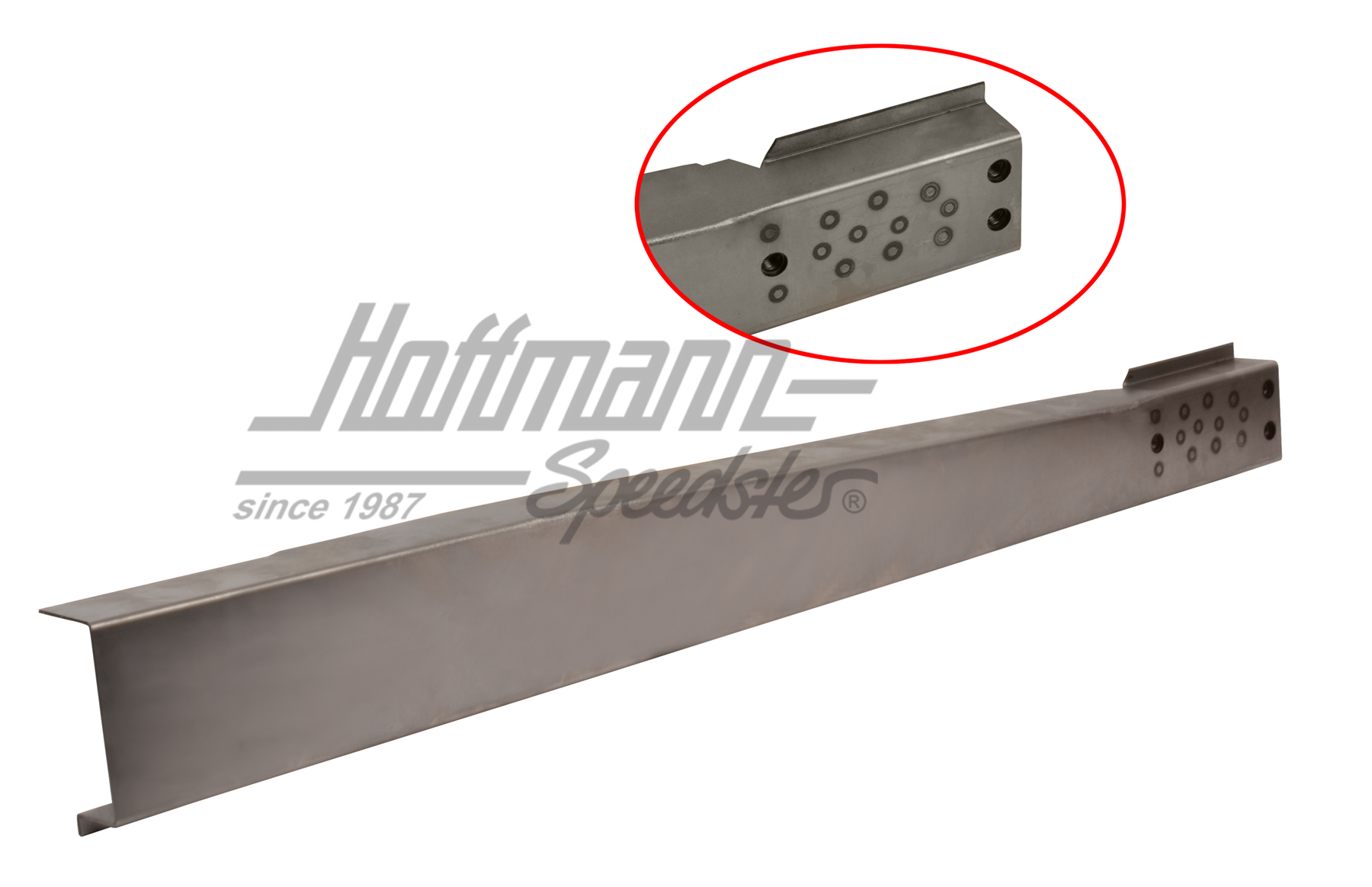

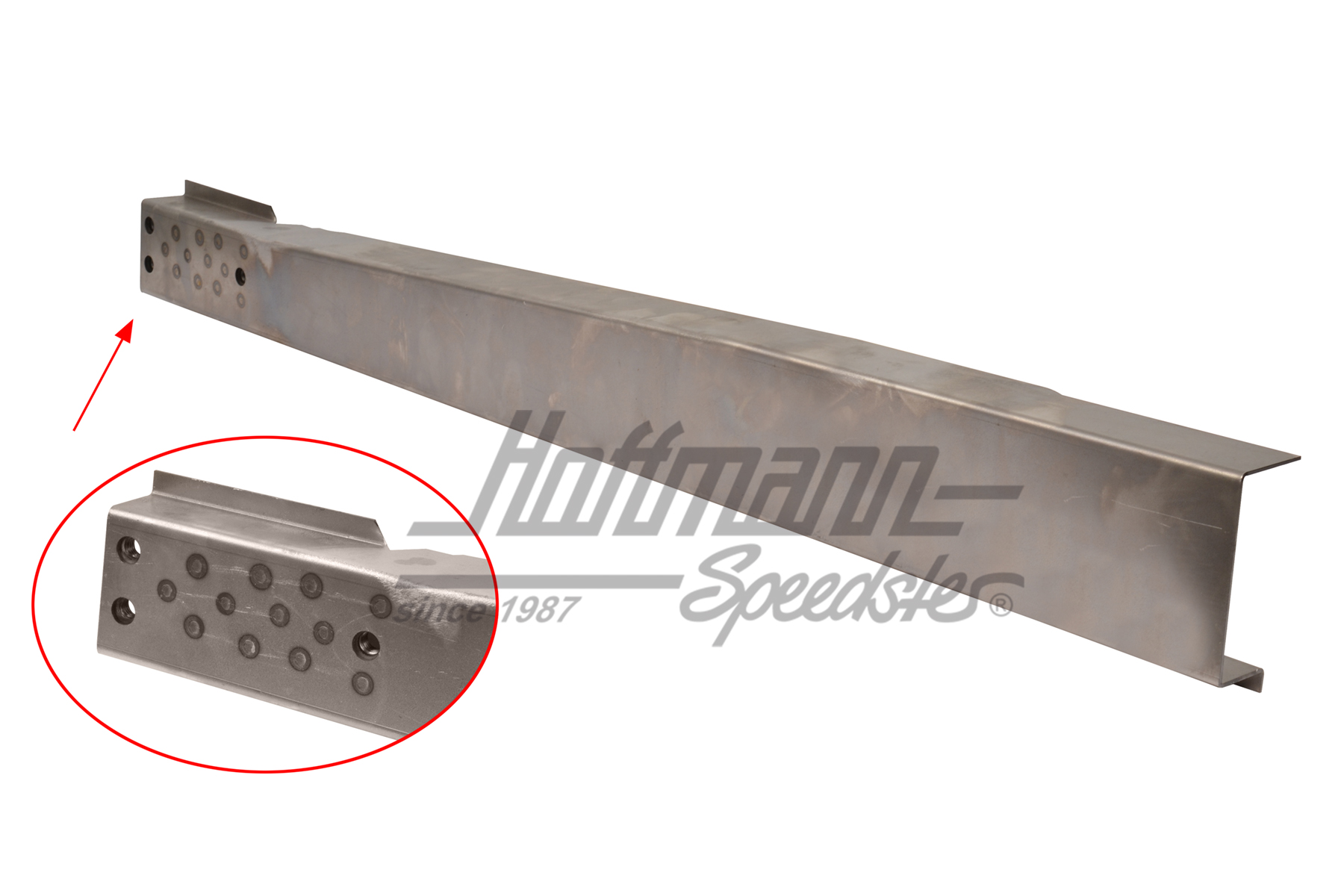

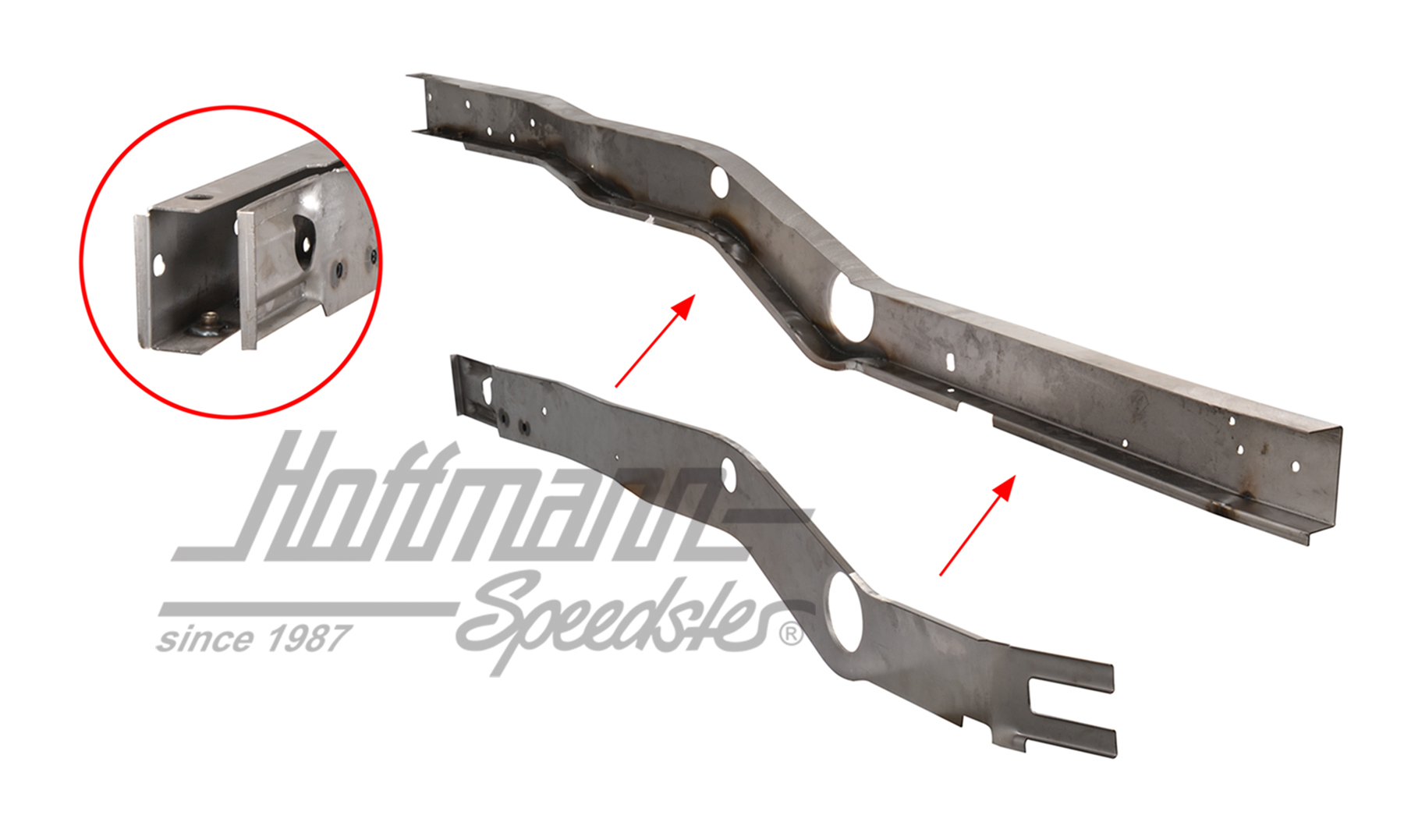

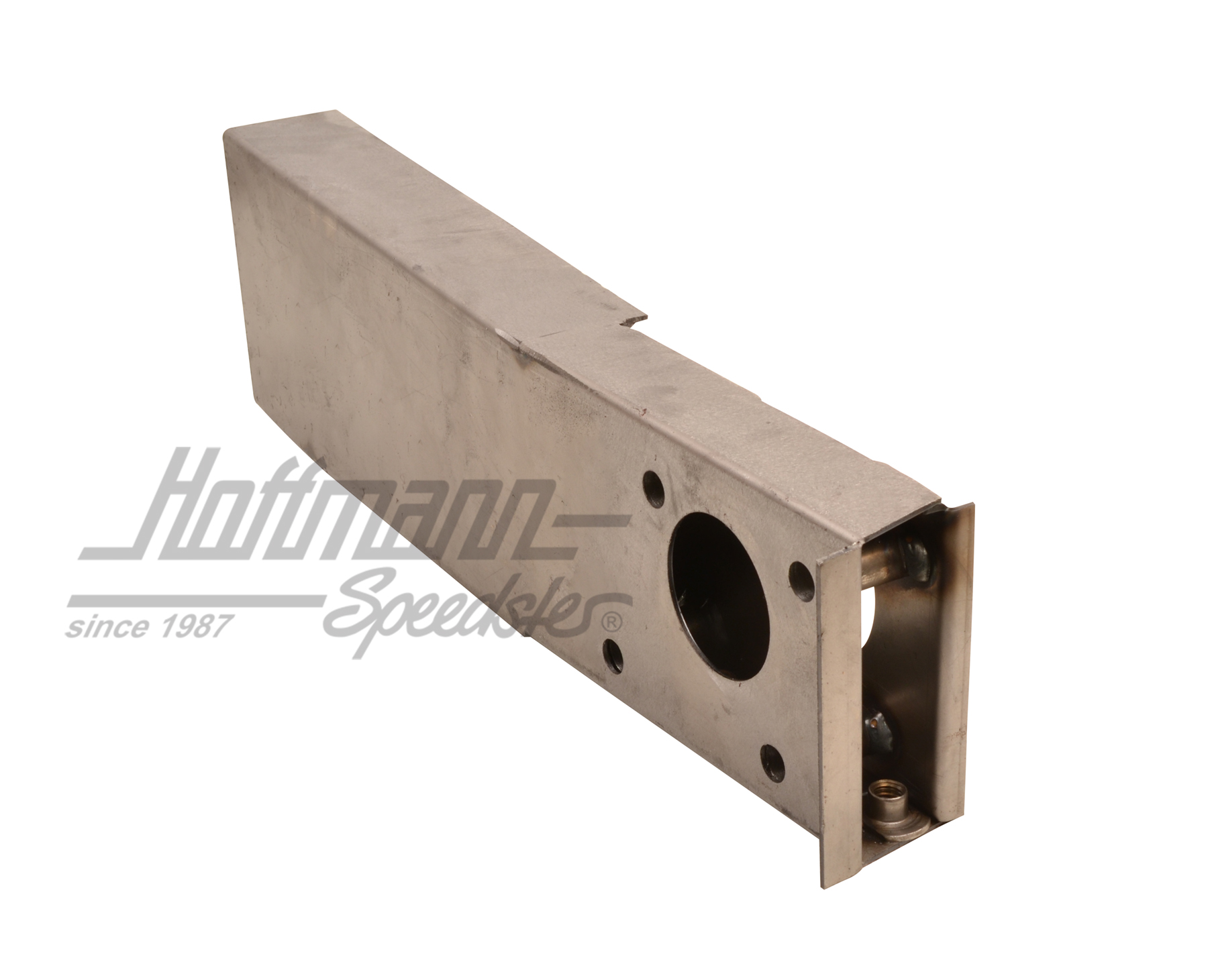

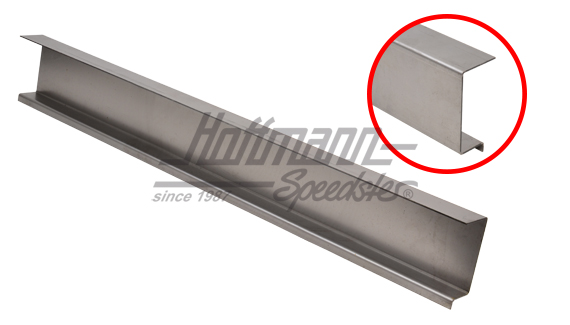

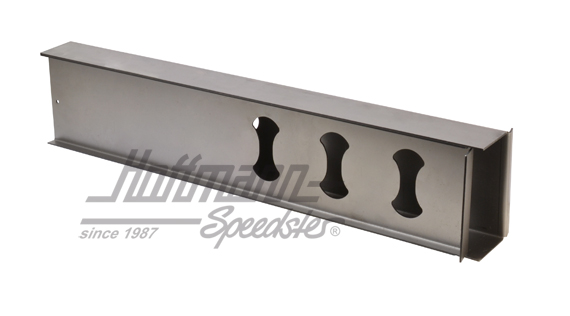

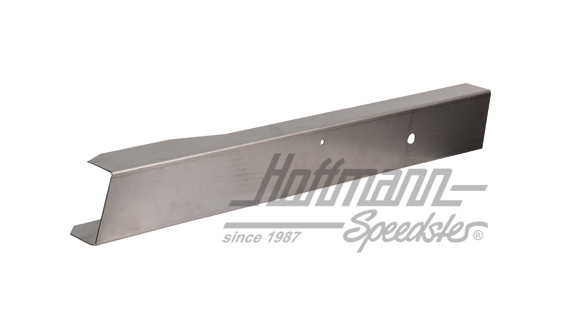

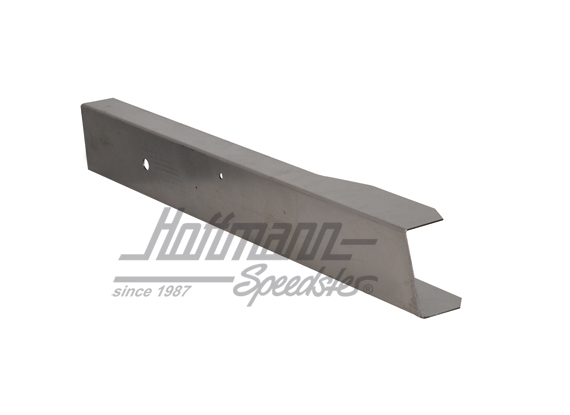

The required component depends on which area of the frame structure is affected. For the VW Bus T2, for example, different versions may be required for the front, centre or rear sections of the longitudinal frame members, as well as additional panels for the underbody and frame structure. Before selecting a part, it should therefore be determined precisely which side and which section need to be repaired. The production period and vehicle version must also be considered, as individual body areas may differ throughout the production run. The key is to carefully compare the existing panel and its attachment points with the intended replacement part. This allows the frame structure to be repaired as precisely as possible and in accordance with the original body structure.
