Repair panels for the floor of a Bus

Floor of the VW Bus T2 – a stable basis for body and interior

The floor of the VW Bus T2 is much more than just the surface beneath the driver, passenger and load area. It forms part of the overall body structure and is closely connected with floor panels, crossmembers, outriggers and other load-bearing sections. Especially on a classic T2, an intact vehicle floor is therefore an important basis for a professional restoration. Moisture, dirt and years of use can cause corrosion, particularly around joints, seams and concealed areas. If damaged floor sections are identified early and repaired correctly, adjacent body structures can be preserved more effectively and further corrosion can be prevented.

Why is the floor of the VW Bus T2 so important?

The floor connects different areas of the body and provides the basis for the cab, interior and other body sections. Floor panels, crossmembers and outriggers work together as one connected structure. Damage should therefore not be considered in isolation. A corroded floor panel, for example, may indicate that underlying or neighbouring sections also need to be inspected. Particular attention should be paid to panel joints, weld points and areas where moisture can remain for longer periods. During restoration, a correctly rebuilt vehicle floor also influences how precisely further body repairs can be carried out.

When should I inspect or repair the floor of my VW Bus T2?

A thorough inspection is advisable as soon as rust, perforation, deformation or suspicious previous repairs become visible. Swollen underbody protection or moisture inside the vehicle can also be reasons to examine the floor more closely. The visible surface alone is not enough. Corrosion can spread beneath coatings, between overlapping panels or along welded joints. Older repairs should also be checked to determine whether sound metal is actually present or whether damage has merely been covered. Before larger restoration work, it is therefore advisable to expose floor panels and adjacent support areas systematically and assess their actual condition.

How is the floor of a VW Bus T2 repaired correctly?

When repairing the floor, careful preparation and correct positioning of the new sheet-metal parts are especially important. Before damaged sections are removed, neighbouring structures and attachment points should be checked carefully.

• Expose corrosion completely: Remove rust, old coatings and previous repair areas so that the true extent of the damage becomes visible.
• Inspect floor panels and supports together: Check not only the visible panel but also crossmembers, outriggers and adjacent connections for damage.
• Align the repair panel precisely: Fit new sheet-metal parts before final welding and carefully check their position, connections and transitions.
• Restore corrosion protection: Protect welded areas, seams, cavities and the underside appropriately after the repair to reduce the surfaces exposed to moisture.

Especially with larger floor repairs, it is important not simply to close individual visible rust spots. What matters is a stable connection between the new repair panel and the sound existing structure.

Which floor or floor panel fits my VW Bus T2?

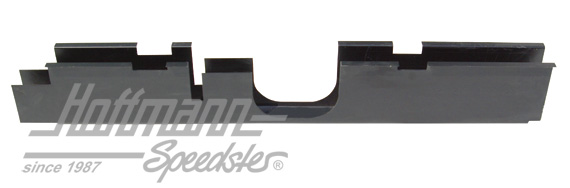

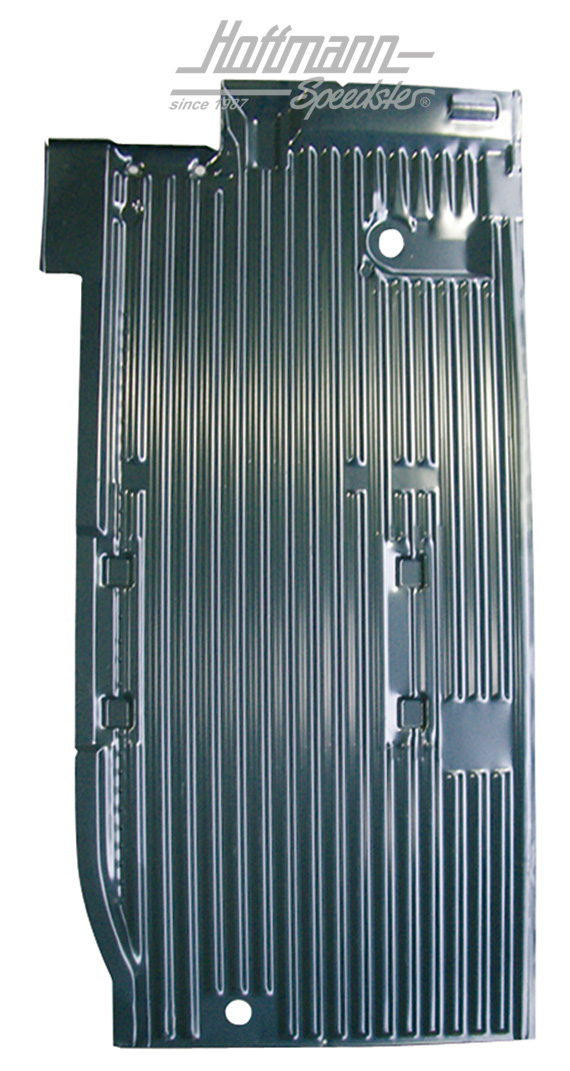

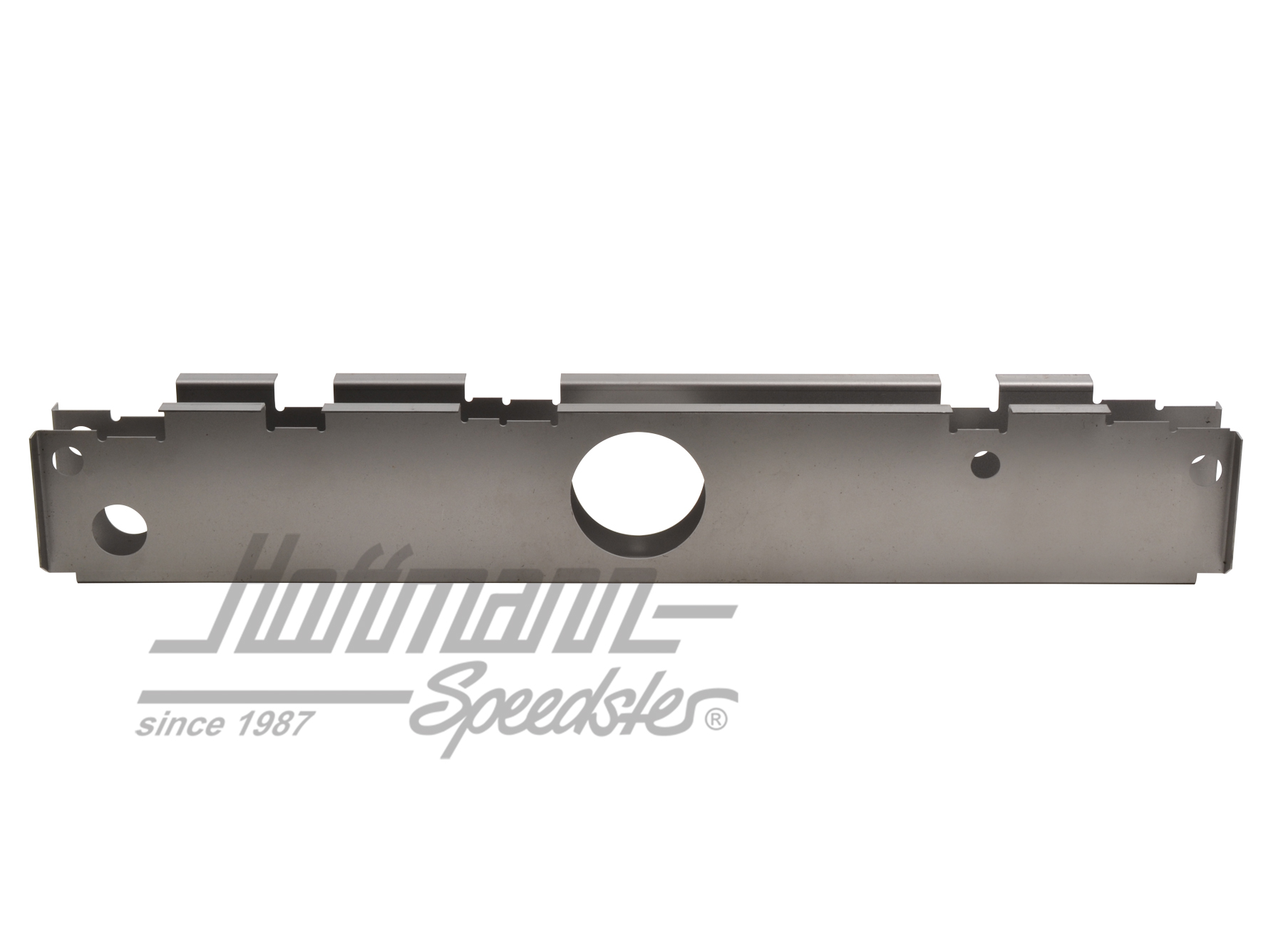

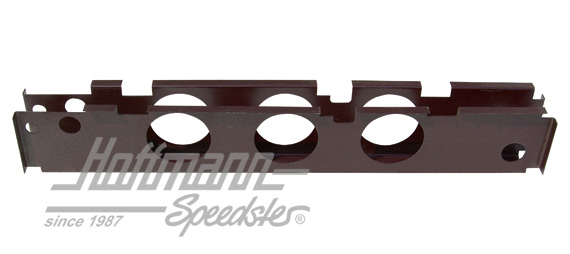

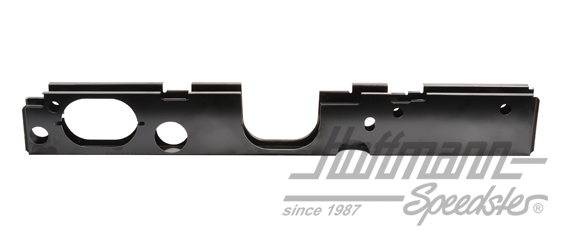

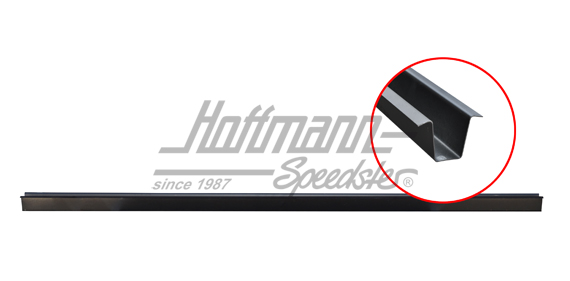

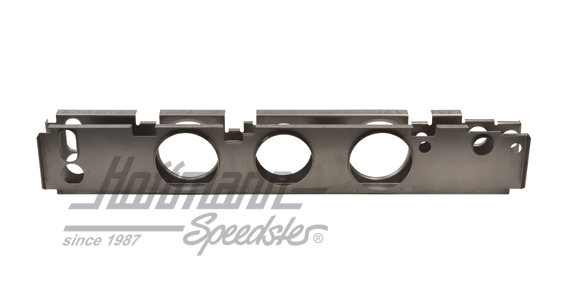

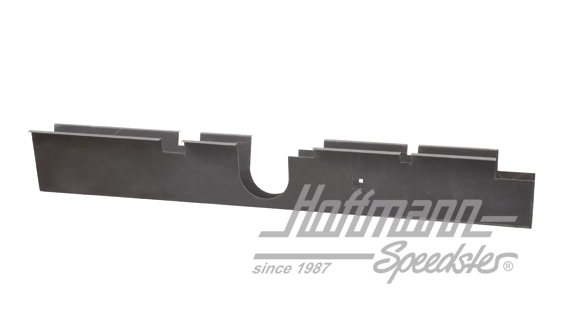

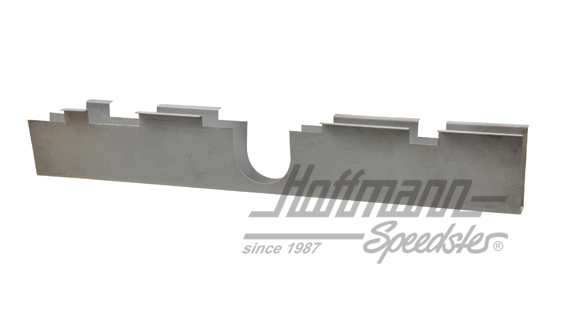

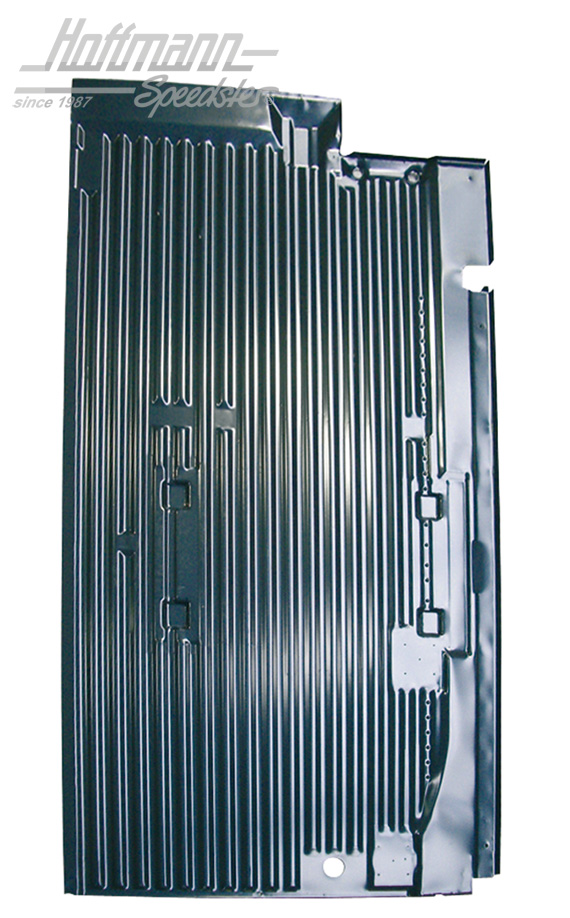

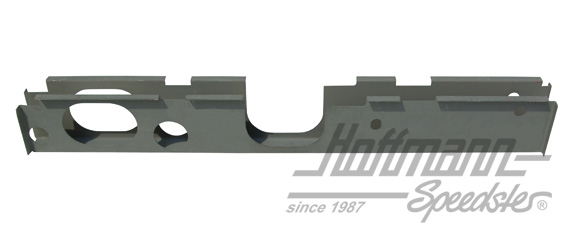

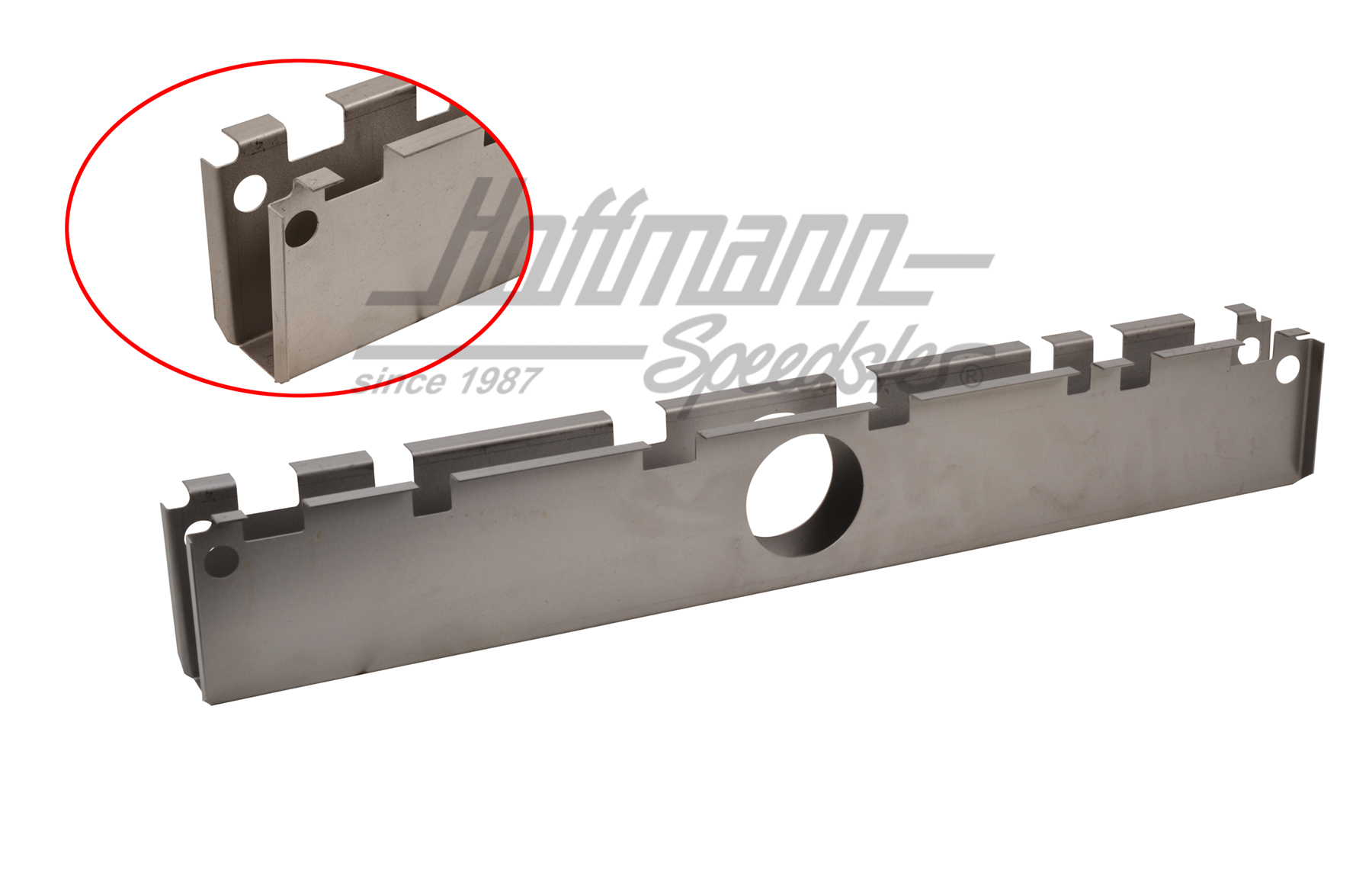

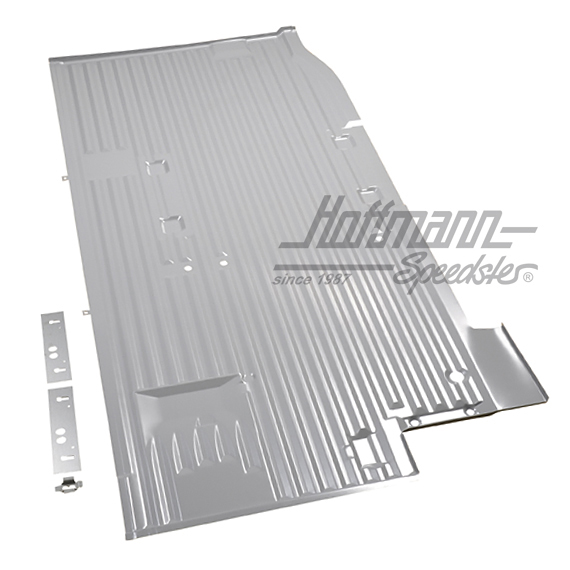

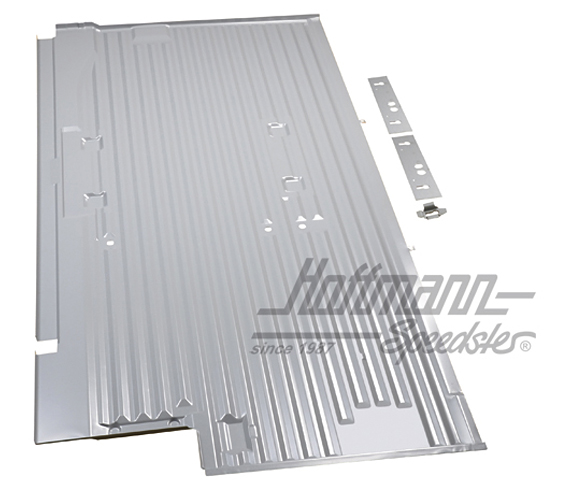

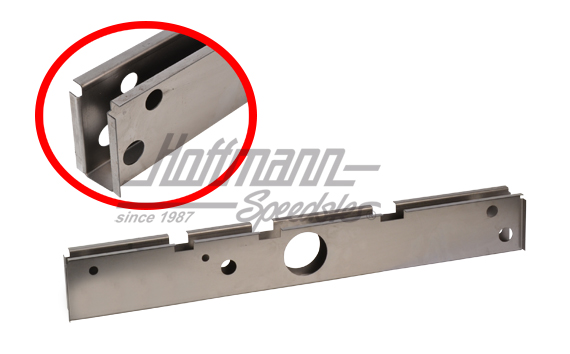

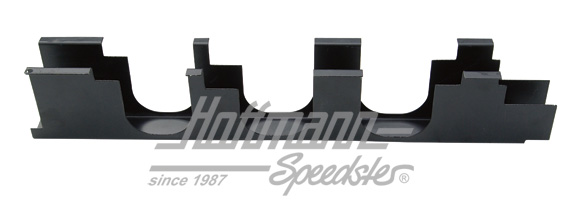

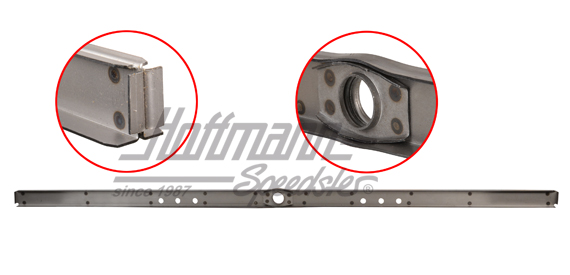

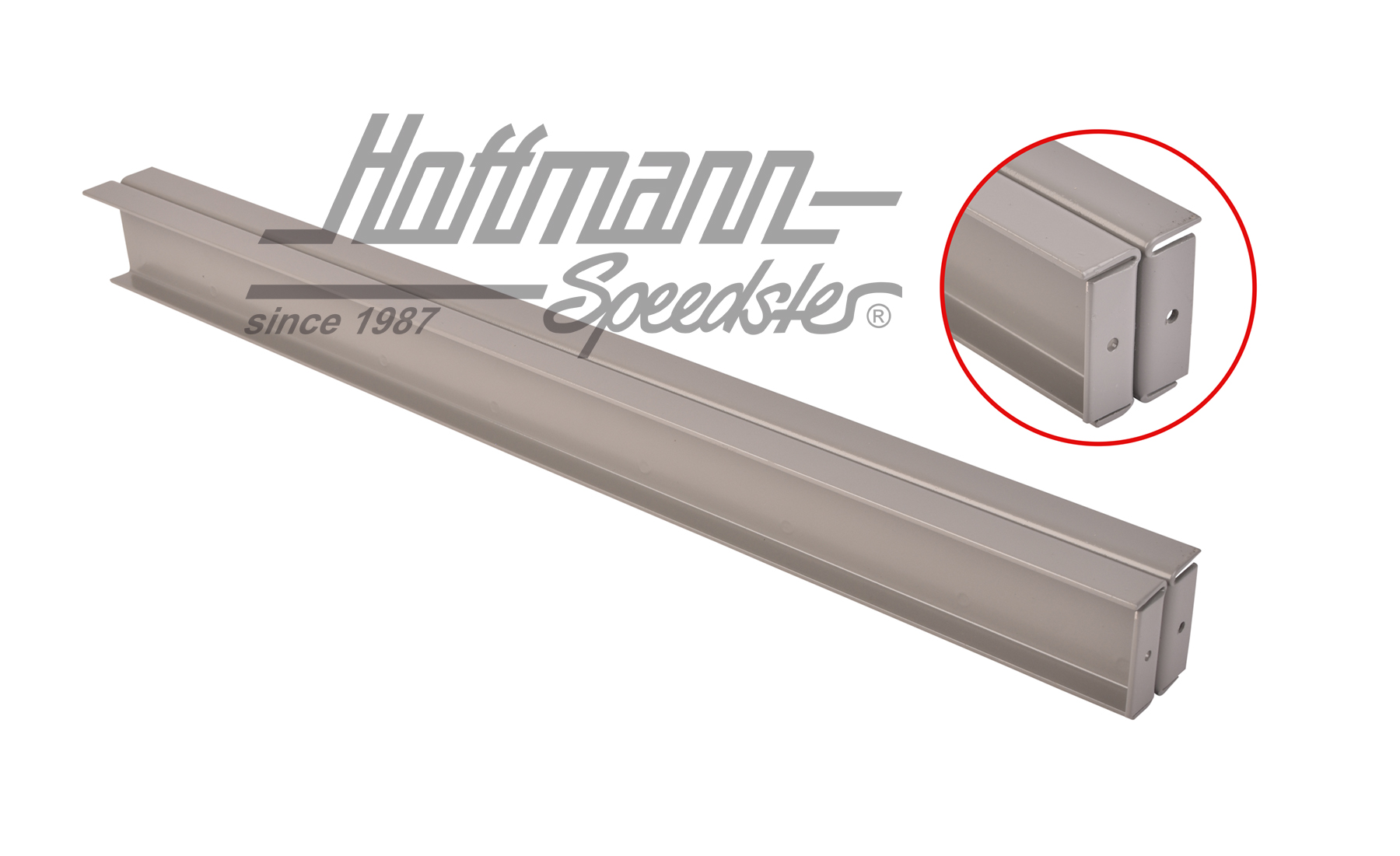

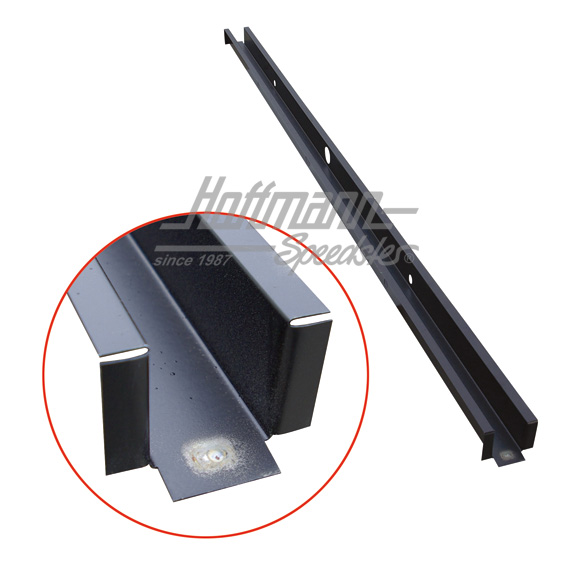

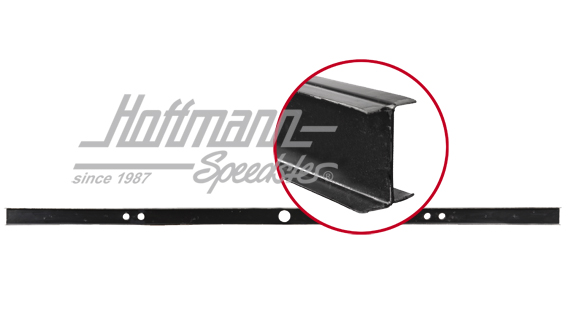

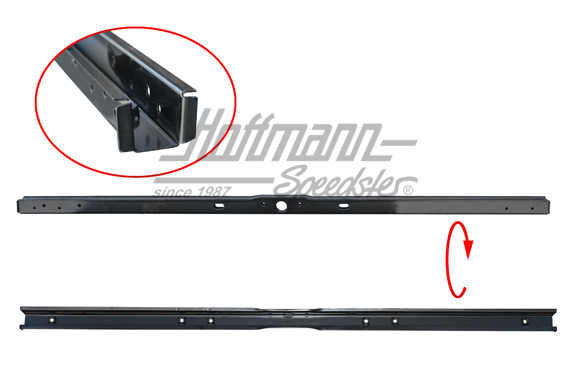

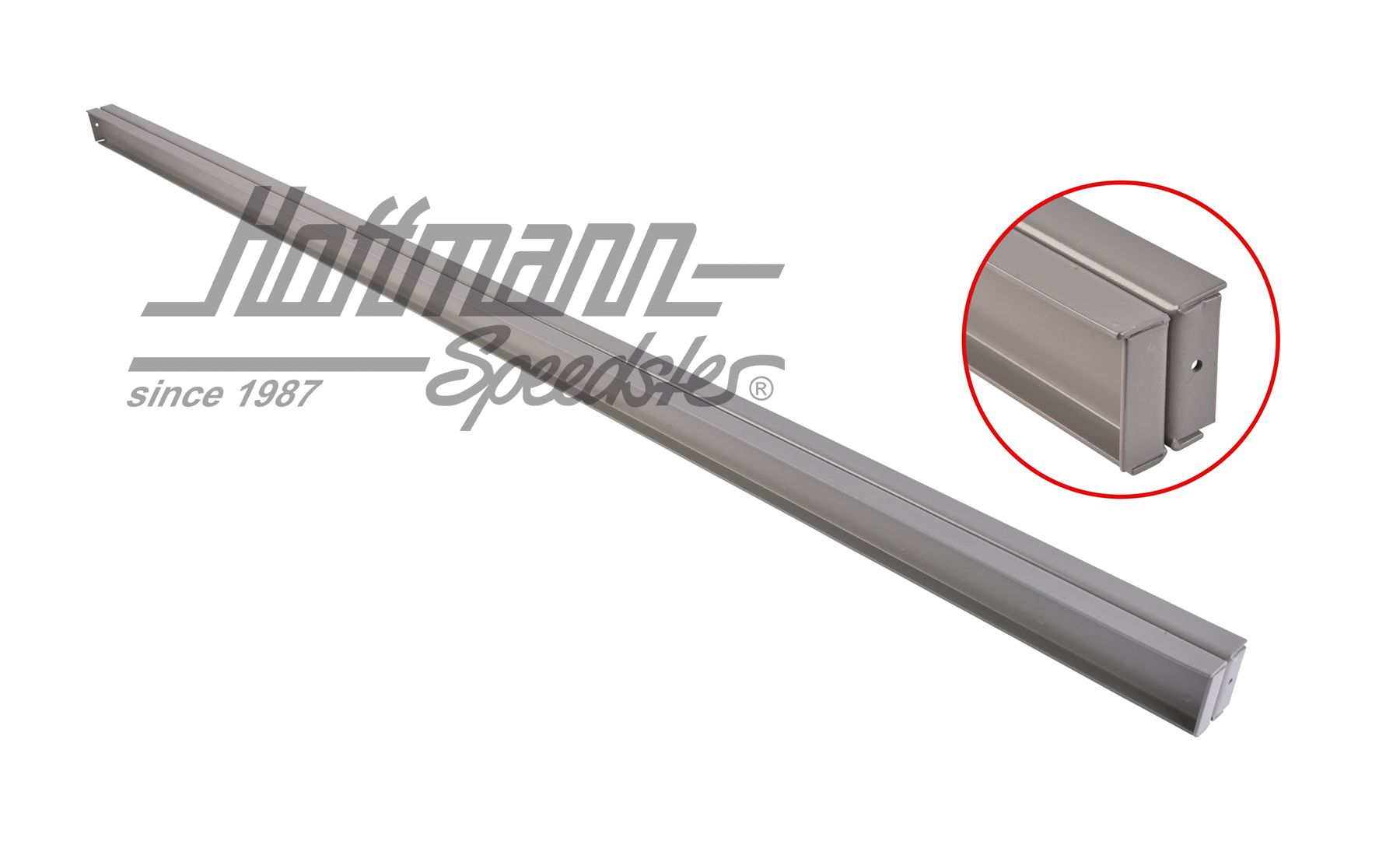

The required repair part depends on which section of the floor is damaged. On the T2, this may include cab floor panels, larger repair sections or components around crossmembers and outriggers. Before selecting a part, it should therefore be clarified whether the left or right side of the vehicle, a particular floor section or an additional load-bearing substructure is affected. Floor panels and attachment points can also differ depending on the production period and vehicle version. Carefully comparing shape, attachment points and neighbouring body components helps to select the appropriate repair panel for the relevant area of the VW Bus T2.
