Repair panels for the doors of a Bus

Doors on the VW Bus T2 – repair panels for the cab and sliding door

The doors of the VW Bus T2 are an important part of the body and also shape the characteristic side appearance of the classic Bulli. Over the years, the lower door areas in particular can be damaged by moisture, dirt and corrosion. Instead of replacing an entire door, repair panels, outer door skins or individual sheet-metal sections can be used depending on the extent of the damage. On the sliding door, both outer and inner areas can also be affected by rust. A careful assessment is therefore essential: only when it is clear which sections are still sound and how far corrosion has spread can the appropriate repair solution for the respective T2 door be determined.

Why are intact doors important on the VW Bus T2?

Intact doors should fit neatly into the body, open and close reliably and form as even a contour as possible with the surrounding bodywork. On the cab doors, both the inner door structure and the outer door skin play a role. The sliding door also includes larger sheet-metal surfaces and inner sections. Corrosion should therefore not be regarded solely as a cosmetic defect. Rust on a lower edge or outer skin can spread along seams and interconnected panels. If only the visible area is treated, concealed damage may remain. A thorough repair therefore always takes the adjacent areas of the respective door into account.

When should I inspect or repair the doors of my VW Bus T2?

Typical signs include rust bubbles beneath the paint, visible corrosion, damaged lower edges, perforation or older repair areas. The lower sections of the doors should be inspected particularly carefully because moisture and dirt can encourage corrosion there. On the sliding door, the outer skin and inner sheet-metal areas should also be checked. Before damaged sections are cut out, the corrosion should be fully exposed. This makes it possible to determine whether a smaller repair panel is sufficient or whether a larger outer door skin or more extensive sheet-metal section is required. Seams and transitions to the existing door structure should also be included in the assessment.

How are repair panels installed on the doors of a VW Bus T2?

When restoring the doors, new repair panels must be fitted as precisely as possible to the existing structure. Particularly with larger sheet-metal surfaces, position and contour influence the final appearance of the entire door.

• Fully expose the corrosion: Remove rust, coatings and problematic previous repairs until the transition to sound and structurally solid sheet metal can be clearly identified.
• Inspect the complete door structure: In addition to the visible outer skin, examine the lower edge, inner panels, seams and adjacent connections for further corrosion damage.
• Fit the repair panel precisely: Carefully position new sheet-metal parts before final attachment and check contours, transitions and the connection to the existing door.
• Restore corrosion protection: Properly protect repaired areas, seams and accessible inner surfaces after the sheet-metal work so that moisture has as little opportunity as possible to cause renewed corrosion.

For larger repairs, it is particularly important to preserve the original shape of the door as accurately as possible during the work. This helps align the transitions to the adjacent bodywork cleanly.

Which doors and repair panels fit my VW Bus T2?

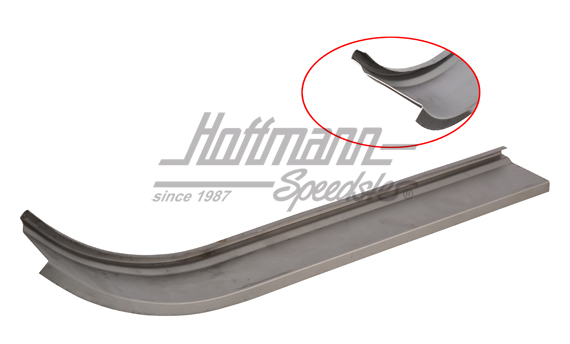

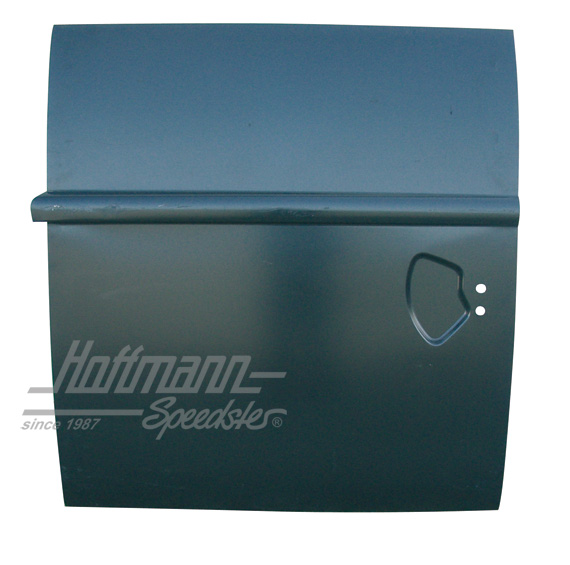

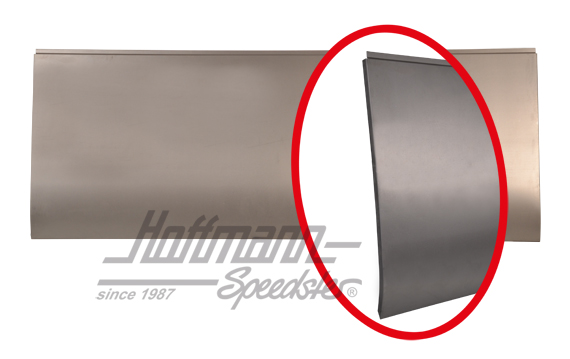

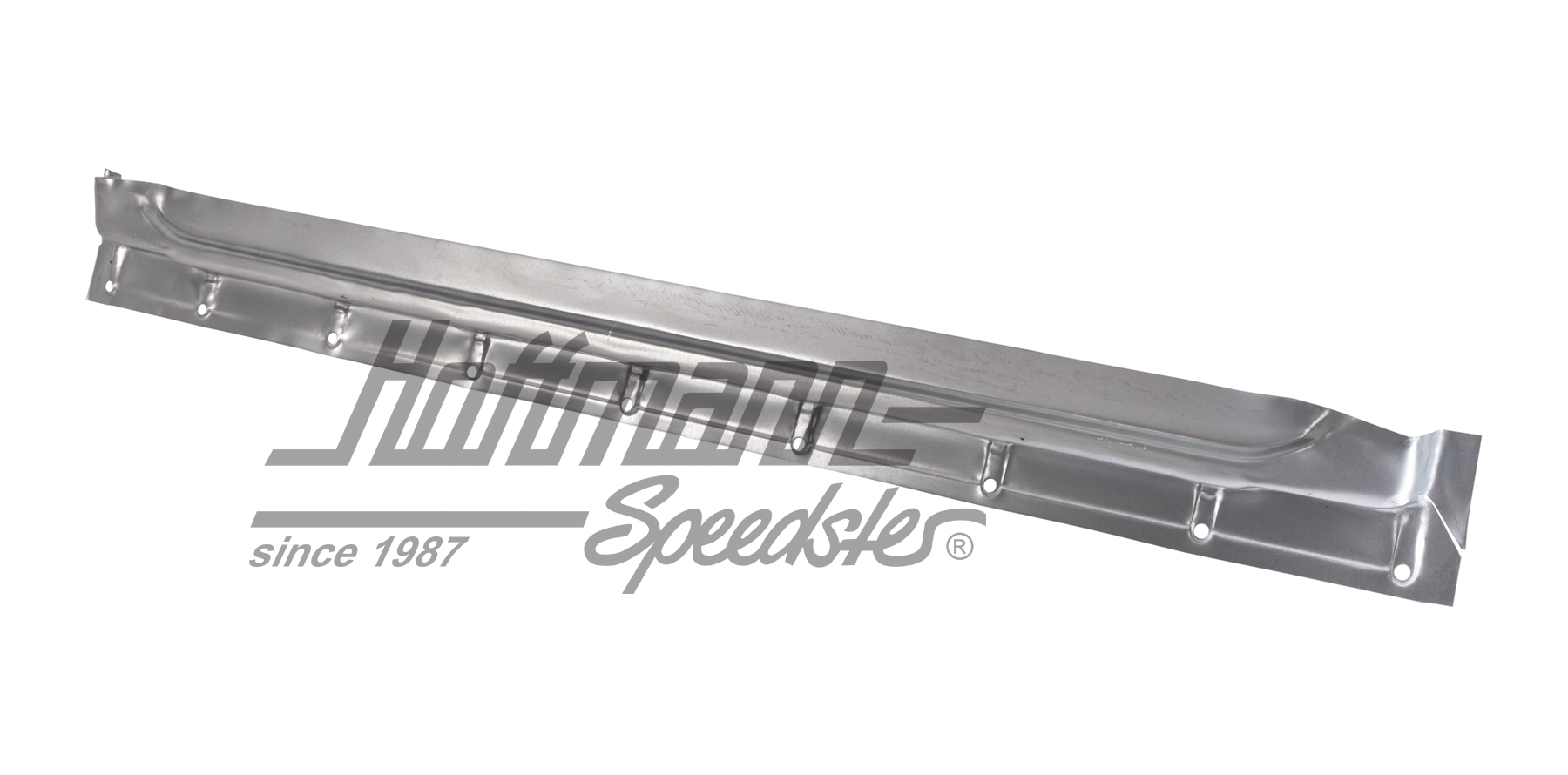

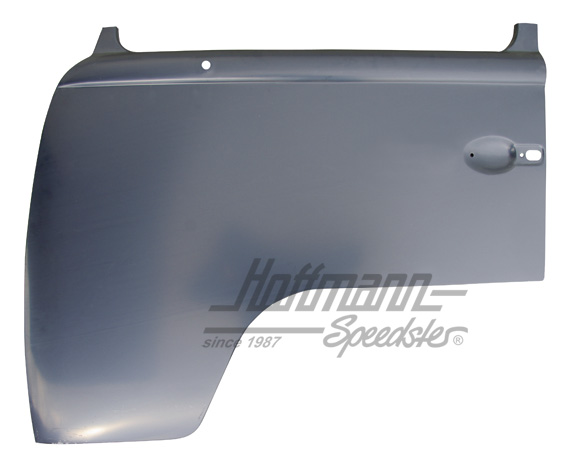

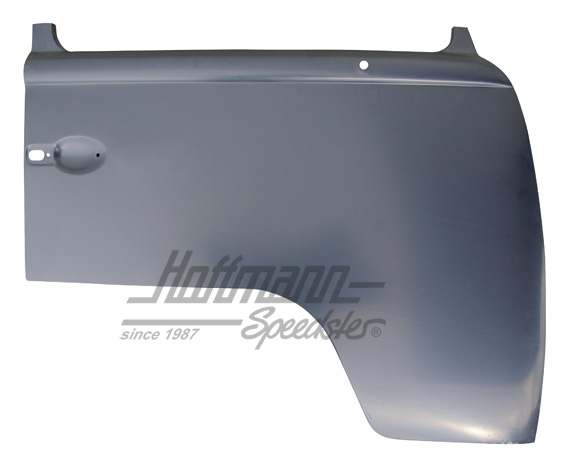

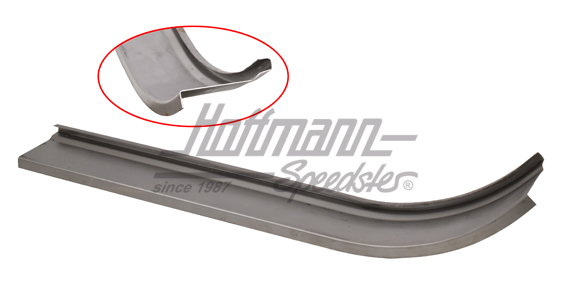

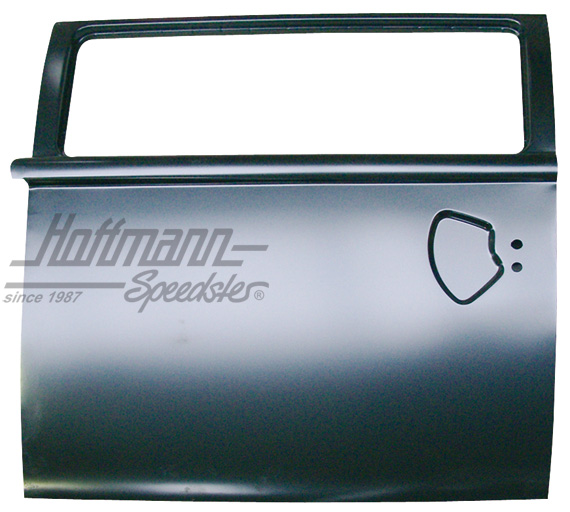

The selection depends on the door position, vehicle side, production period and extent of the existing damage. For the cab doors, for example, lower inner door repair panels or larger outer door skins may be relevant. For the sliding door, depending on the version and repair requirements, outer door panels, inner sections or a more extensive replacement solution may be suitable. Before selecting a part, it should therefore be established exactly which door is affected and which sheet-metal area must be replaced. The production period, left or right vehicle side, existing door version and shape of the connecting areas can then be compared. This allows the repair panel to be selected specifically for the respective door of the VW Bus T2.
